Chemical Pump
The pump manufacturer JESSBERGER has expanded its program with a PVDF laboratory pump. Small quantities of chlorine- and fluorine-containing media can be transferred easily, quickly and safely with this chemical drum pump.
Our Best Hot Sell Model

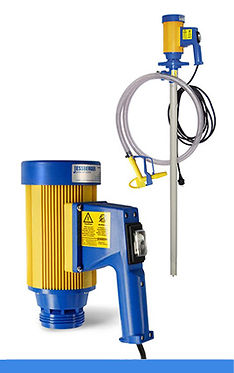

ELECTRIC UNIVERSAL MOTOR
JP-280
230 VOLT, 50 HZ, 825 WATT, IP 24,
ALTERNATIVELY 115 VOLT, 60 HZ
The drive JP-280 is a compactly built, not explosion-proof, internally ventilated universal motor that is our top seller for aggressive media in the chemical and the galvanic industry beside JP-180.
This handy, very robust and powerful motor can be used to drive the suction tubes of drum pumps. In this combination it is suitable for many thin liquid and slightly viscous, neutral, aggressive and non-flammable liquids (max 1,000 mPas). Its sophisticated, technically clear structure ensures an efficient and safe use when transferring a wide range of media.
The drum pump motor is characterized not only by its light weight (3,8 kg) but also by its elegant design and ease of use. The non-stationary and stationary usable drive is particularly suitable for intermittent operation. As internally ventilated motor it has an optimal air cooling, low noise and ensures high operational safety and long lifetime.
The motor housing made of polypropylene ensures a high chemical resistance when aggressive vapours of acids and alkalies are present.
The standard in the on/off switch integrated low voltage release is intended to prevent an uncontrolled start of the drum pump motor after a power failure or voltage drop and thus guarantees maximum safety.
The flow rate of the media to be pumped can be regulated by an optionally available speed control that is integrated in the motor handle. Therefore the flow rate can be adjusted to the needs of the user.
The maximum density of the media is for the JP-280 universal motor 1.9, the maximum viscosity 1,000 mPas.
PUMP TUBES MADE OF POLYVINYLIDENFLUORID (PVDF)
are especially suitable for highly aggressive liquids such as concentrated acids and bases.
Drive shaft: Hastelloy 2,4610
Media temperature: max. 90°C
Media: Hydrobromic acid, perchloric acid, chromic acid, hydrofluoric acid, sodium hypochlorite, nitric acid and sulfuric acid (> 90%).
Also all media that are listed at the pump tubes made of polypropylene can be handled.
PUMP TUBES MADE OF ALUMINIUM (ALU)
are suitable for neutral and hardly combustible liquids. With these pump tubes particularly mineral oil products up to a maximum viscosity of 1.000 mPas will be transferred.
Drive shaft: Stainless steel 316Ti
Media temperature: max. 90°C
Media: Drilling emulsions, diesel, liquid soap, liquid wax, gear oils, heating oil, hydraulic oils, machine oils, mineral oils and motor oils.
PUMP TUBES MADE OF STAINLESS STEEL 316TI
are used for all neutral, slightly aggressive liquids such as diluted acids, alkalies or detergents and thin fluid food. In addition the pump tubes provide a special safety for conveying or transferring flammable liquids of different hazard classes (up to temperature class 4) in the Ex-zone 0 and when pumping low-viscous neutral or slightly aggressive media in Ex-zones 1 and 2.
Drive shaft: Stainless steel 316Ti
Media temperature: max. 90°C (with PTFE rotor),
max. 120°C (with rotor made of stainless steel block)
Media: Acetone, alcohol, ammonia, gasoline, flammable solvents, caustic lye, nitrocellulose lacquers, perchlorethylene, phosphoric acid, sulfuric acid (up to 7.5% and over 90%), trichlorethylene, toluene.
In addition the stainless steel pump tubes are suitable for pumping thin fluid food such as fruit juices, milk, edible oils and for all media that are mentioned at aluminium tubes.
We will be pleased to advice you regarding chemical resistance. Please ask us by email to gpimalaysia@yahoo.com
